Clip product range - Fix and Sliding clips

Metal roofing is constantly exposed to a wide variety of environmental influences, such as wind loads and temperature fluctuations, which causes longitudinal expansion that makes the use of fixed and sliding fasteners indispensable. For longer panels, we recommend our long sliding clips.

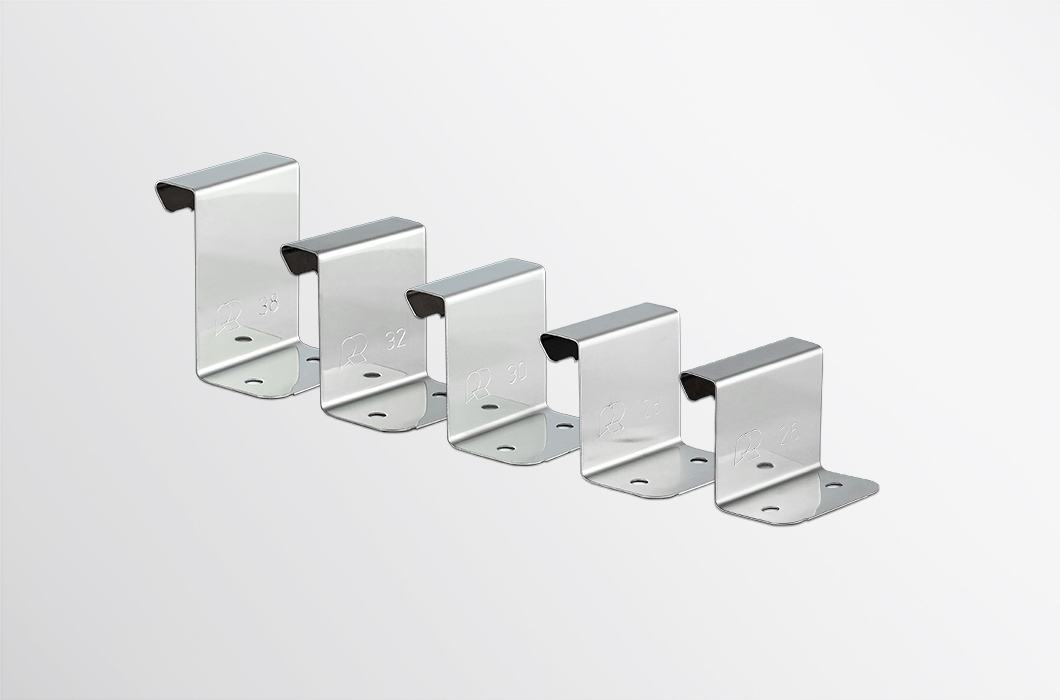

Fixing clips

The fixing clip has rounded corners and a slight bend at the foot end. They are available in 6 versions for folding heights of 25 to 50mm. Also the fixing clip is available with a longer foot part, or in a width of 38mm.

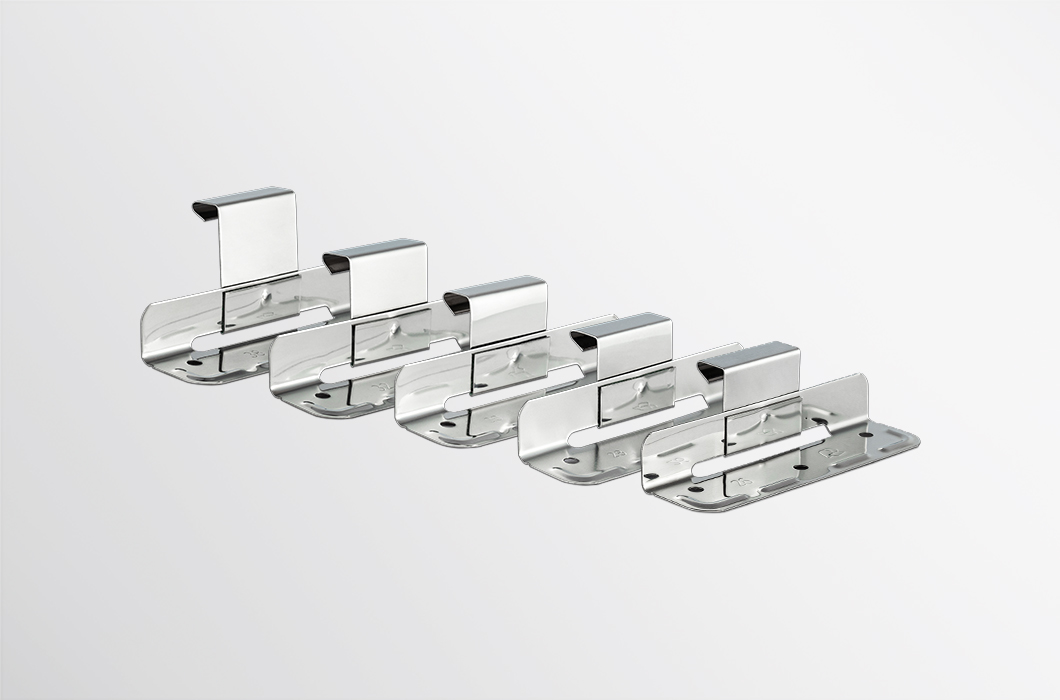

Sliding clips

Design with rounded corners and corrugations to prevent damage to the roof covering by means of high corners, but also to stiffen the lower part or to compensate for the used nail heads. Due to the special shape of the upper part, a slight clamping effect is achieved in the pre-profiled fold, so that the attachments suspended for assembly cannot slide downwards. Sliding clip with a 55mm sliding area are available in 5 versions for seam heights from 25 to 38mm.

Thus, the following coulter lengths are possible with a standing seam cover:

- Titanium zinc up to 12 meters
- Stainless steel up to 16 meters
- Aluminium up to 11 meters
- Copper up to 14 meters
- Galvanized steel up to 16 meters

When using longer shares, we recommend the use of our long sliding clips.

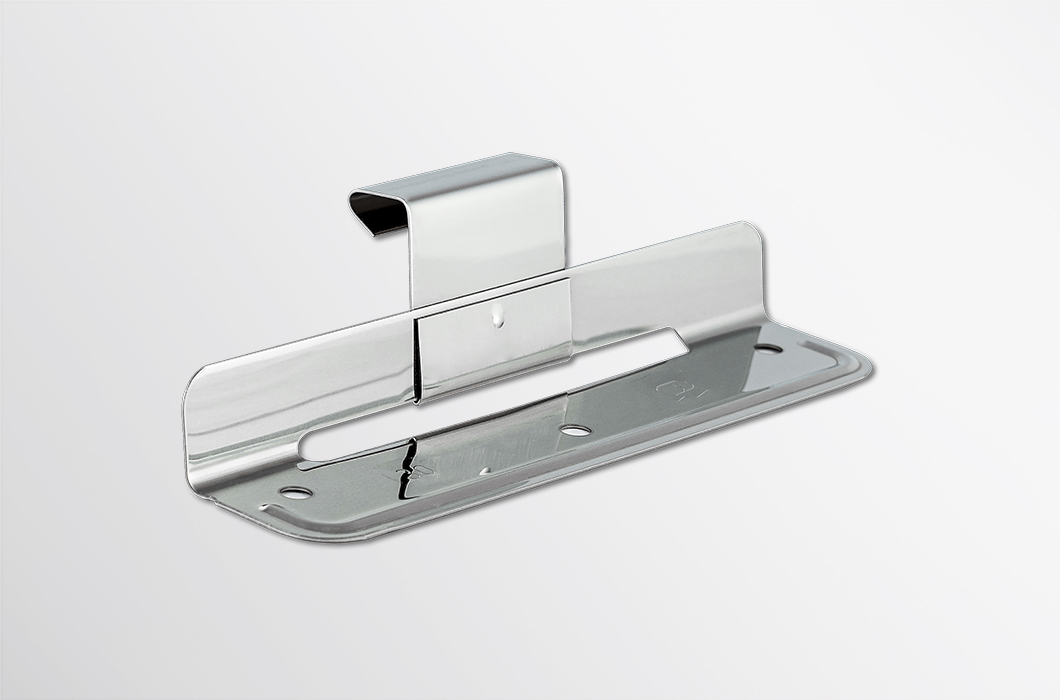

Long sliding clips

Design with rounded corners and corrugations to prevent damage to the roof covering by means of high corners, but also to stiffen the lower part or to compensate for the used nail heads. Due to the special shape of the upper part, a slight clamping effect is achieved in the pre-profiled fold, so that the attachments suspended for assembly cannot slide downwards.

Long sliding clips with a 75mm sliding area is available in 5 versions for seam heights from 25 to 38mm.

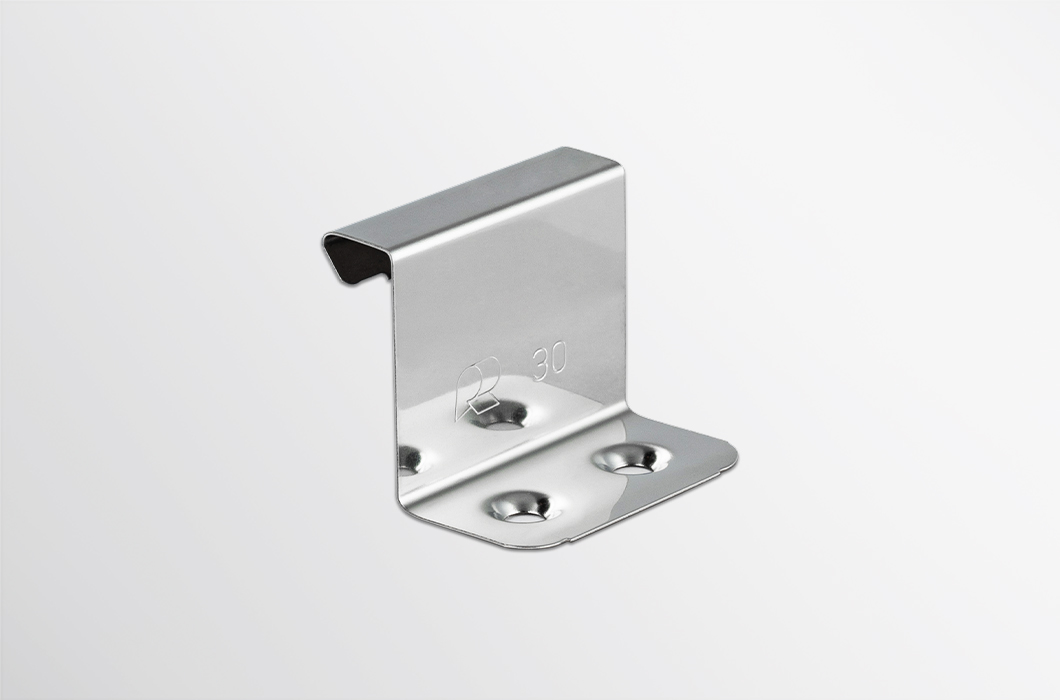

Fixing clips with countersunk holes

The fixing clip has rounded corners and a slight bend at the foot end. They are available in 5 versions for folding heights of 25 to 38mm. Also the fixing clip is available with a longer foot part.

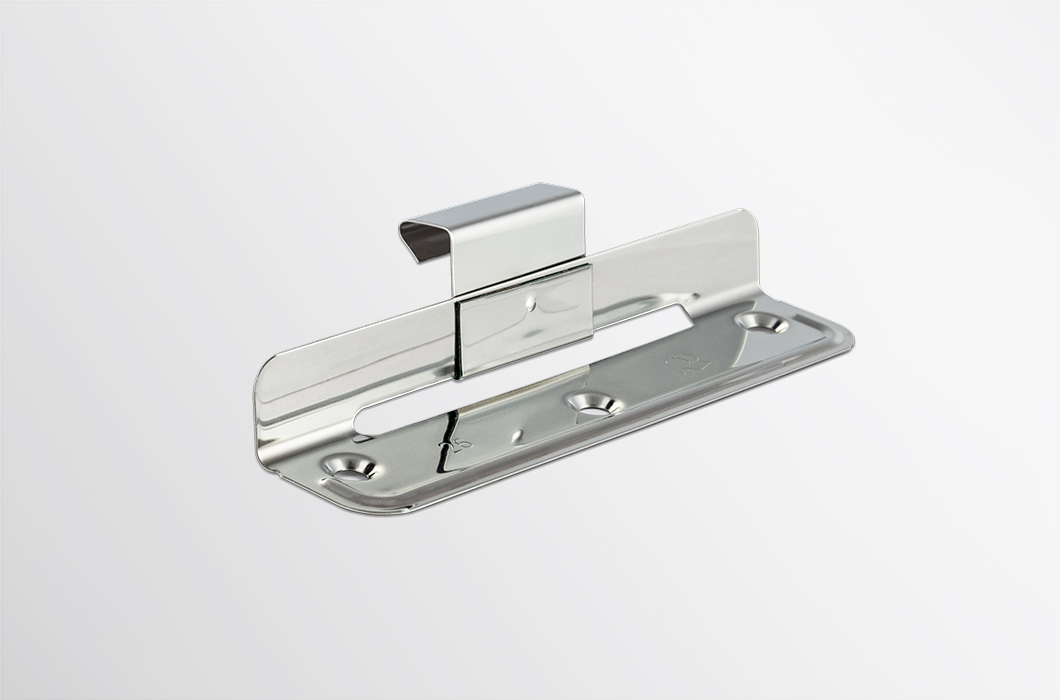

Sliding clip with countersunk holes

Design with rounded corners and corrugations to prevent damage to the roof covering by means of high corners, but also to stiffen the lower part or to compensate for the used nail heads. Due to the special shape of the upper part, a slight clamping effect is achieved in the pre-profiled fold, so that the attachments suspended for assembly cannot slide downwards. Sliding with a 55mm sliding area is available in 5 versions for seam heights from 25 to 38mm.

Thus, the following coulter lengths are possible with a standing seam cover:

- Titanium zinc up to 12 meters
- Stainless steel up to 16 meters
- Aluminium up to 11 meters
- Copper up to 14 meters
- Galvanized steel up to 16 meters

When using longer shares, we recommend the use of our long sliding clips.

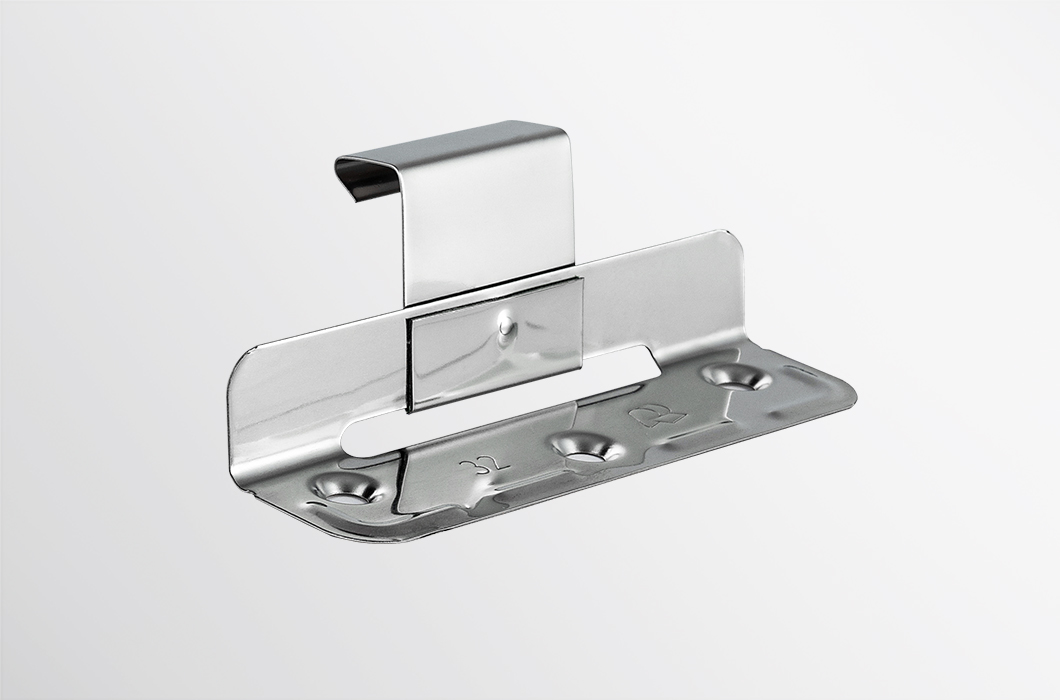

Long sliding clips with countersunk holes

Design with rounded corners and corrugations to prevent damage to the roof covering by means of high corners, but also to stiffen the lower part or to compensate for the used nail heads. Due to the special shape of the upper part, a slight clamping effect is achieved in the pre-profiled fold, so that the attachments suspended to assembly cannot slide downwards.

Long sliding clips with a 75mm sliding area are available in 5 versions for seam height from 25 to 38mm.

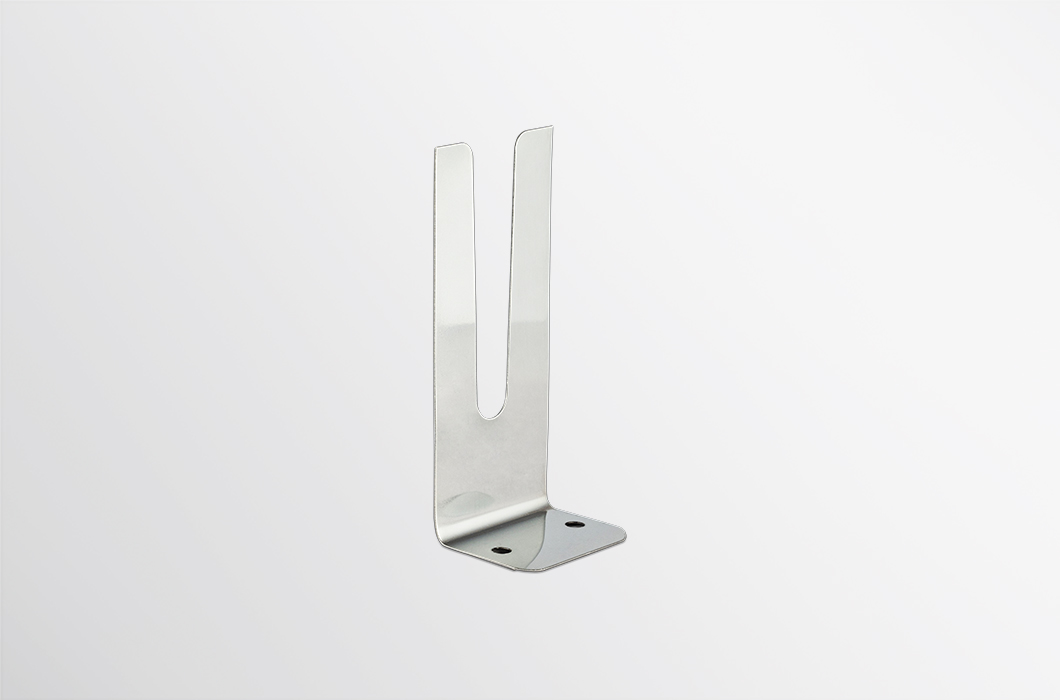

Bifurcated "v" clips

The bifurcated “v“ clips have rounded corners to avoid a splash of the clip base.
It is used for the attachment of folded sheet metal coils.

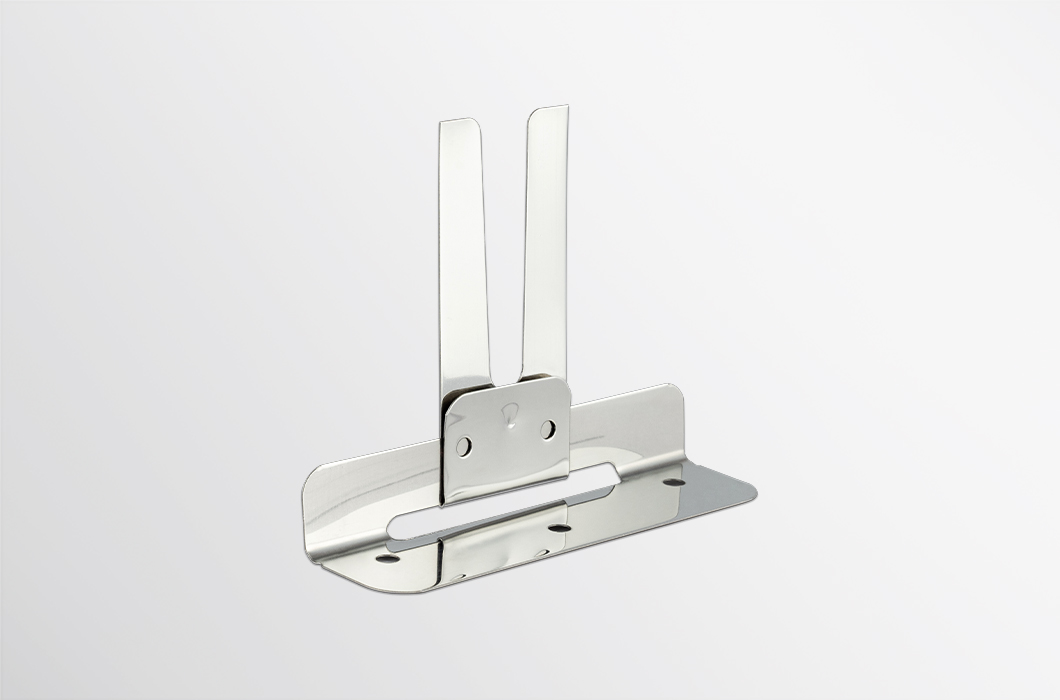

Sliding clips with bifurcated “v“ clips

The bifurcated “v“ clips have rounded corners to avoid a splash of the clip base.

It is used for the attachment of folded sheet metal coils.

Clip product calculation

Based on the rules of the plumbing trade, the exact distances etc. between the clips for your metal roof can be determined by means of a clip calculation. Click here for the liability determination of the Sanitary Association.
